China OEM High Quality140MM 160MM 168MM 200MM Stainless Steel UPVC Big Size Bhora Vvhavha For Project DN200 fekitari uye vagadziri

OEM Yakakwirira Hunhu140MM 160MM 168MM 200MM Stainless Simbi UPVC Hukuru Hukuru Bhora Vvhavha YeProjekti DN200

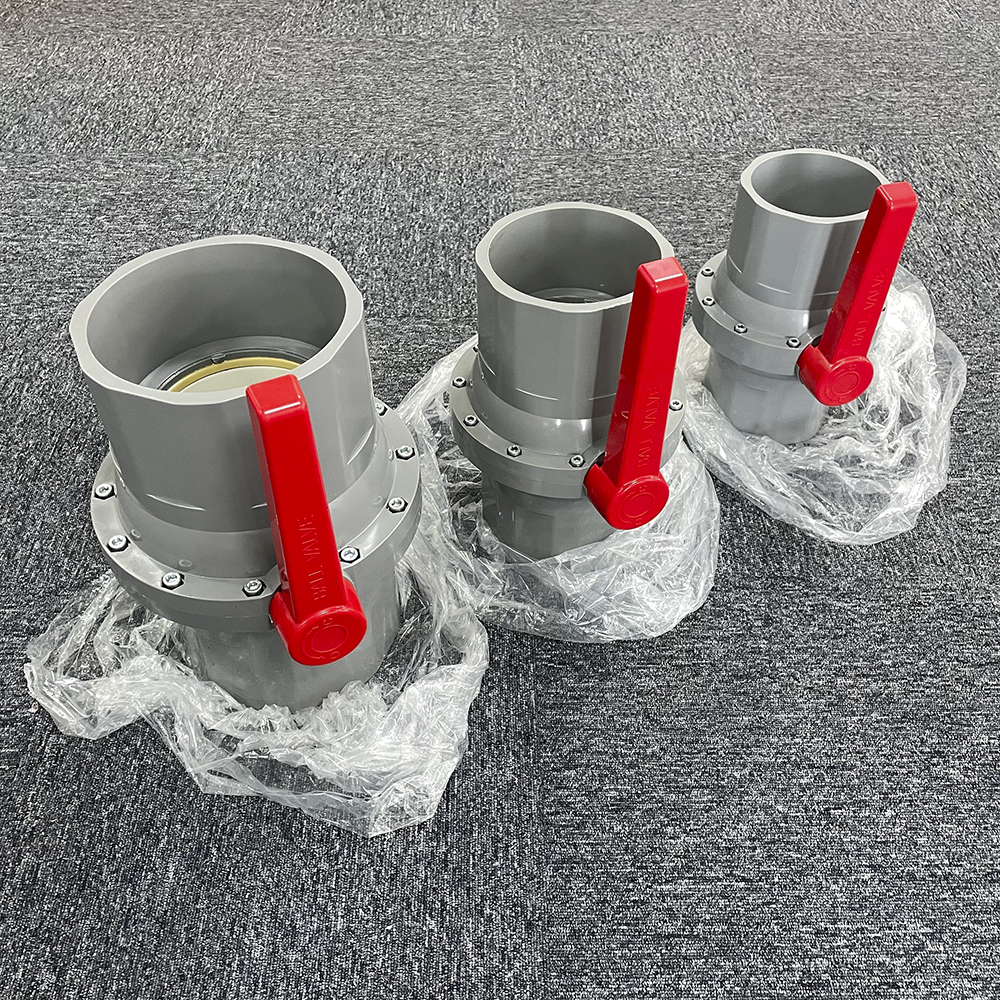

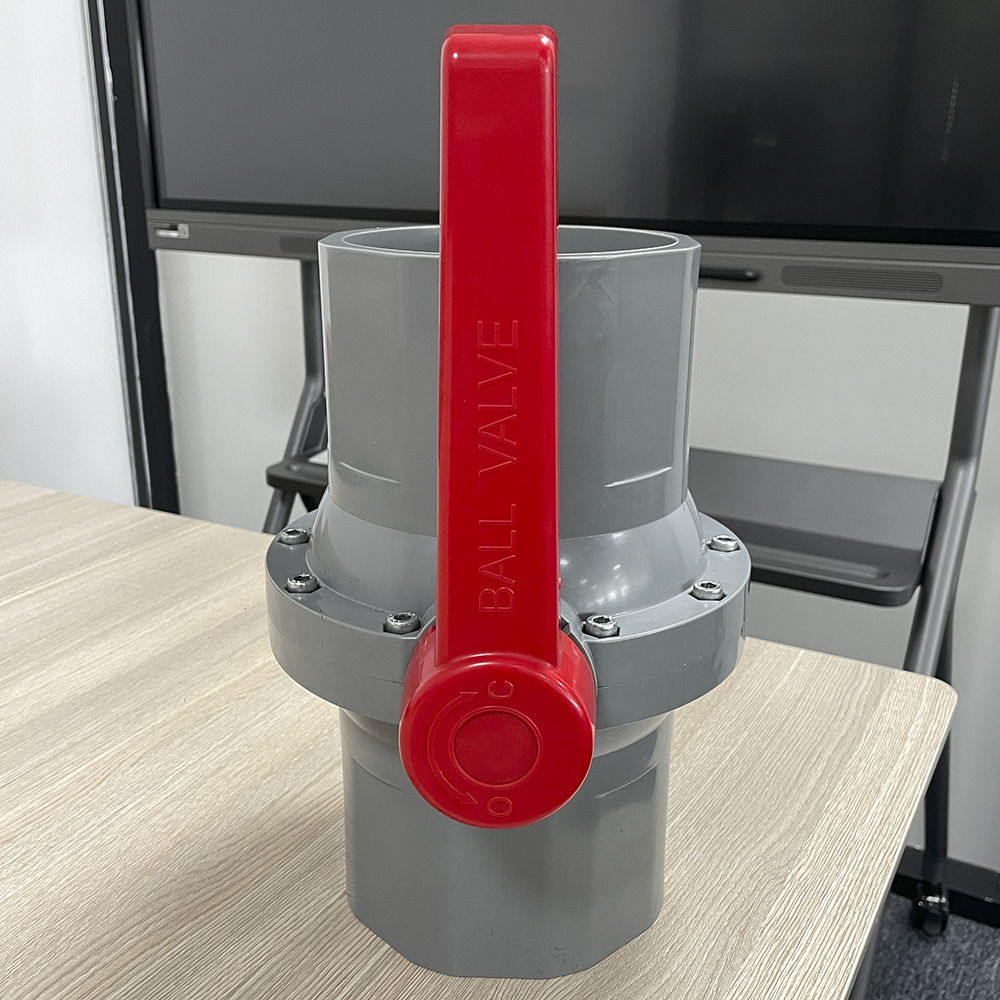

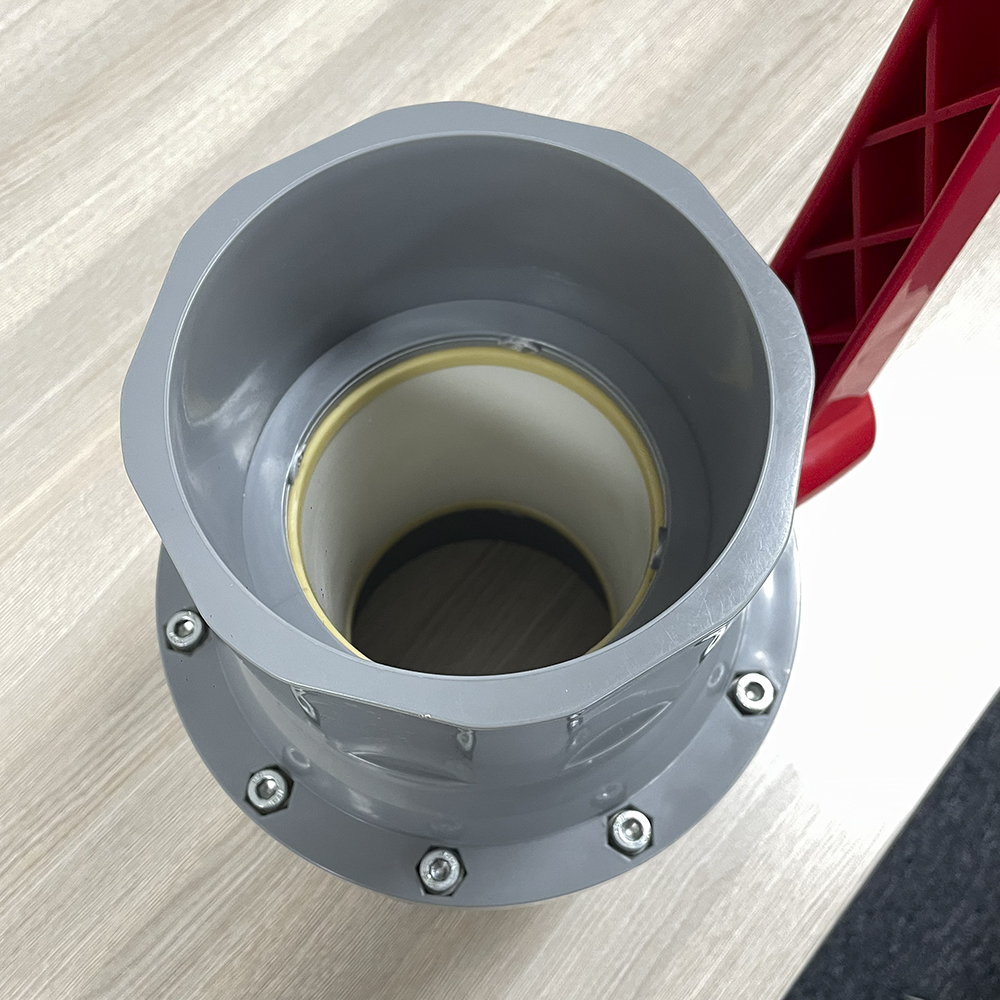

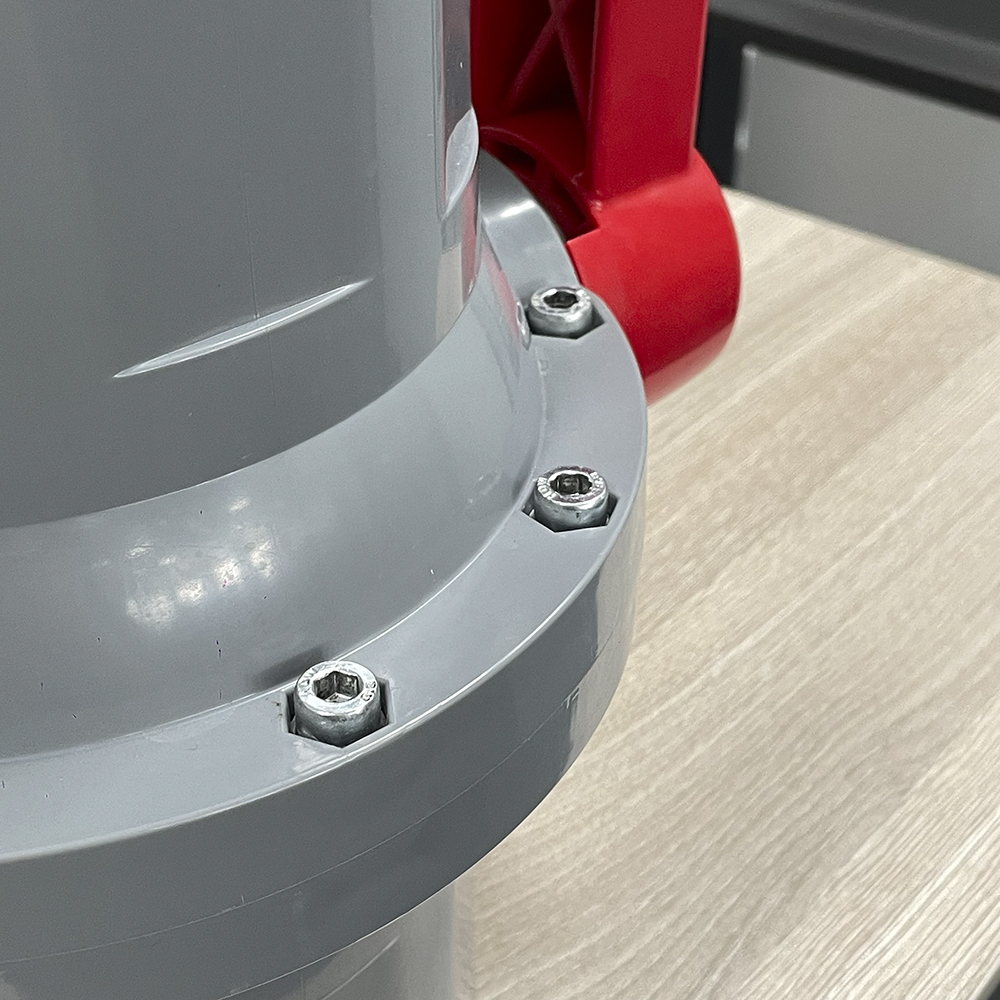

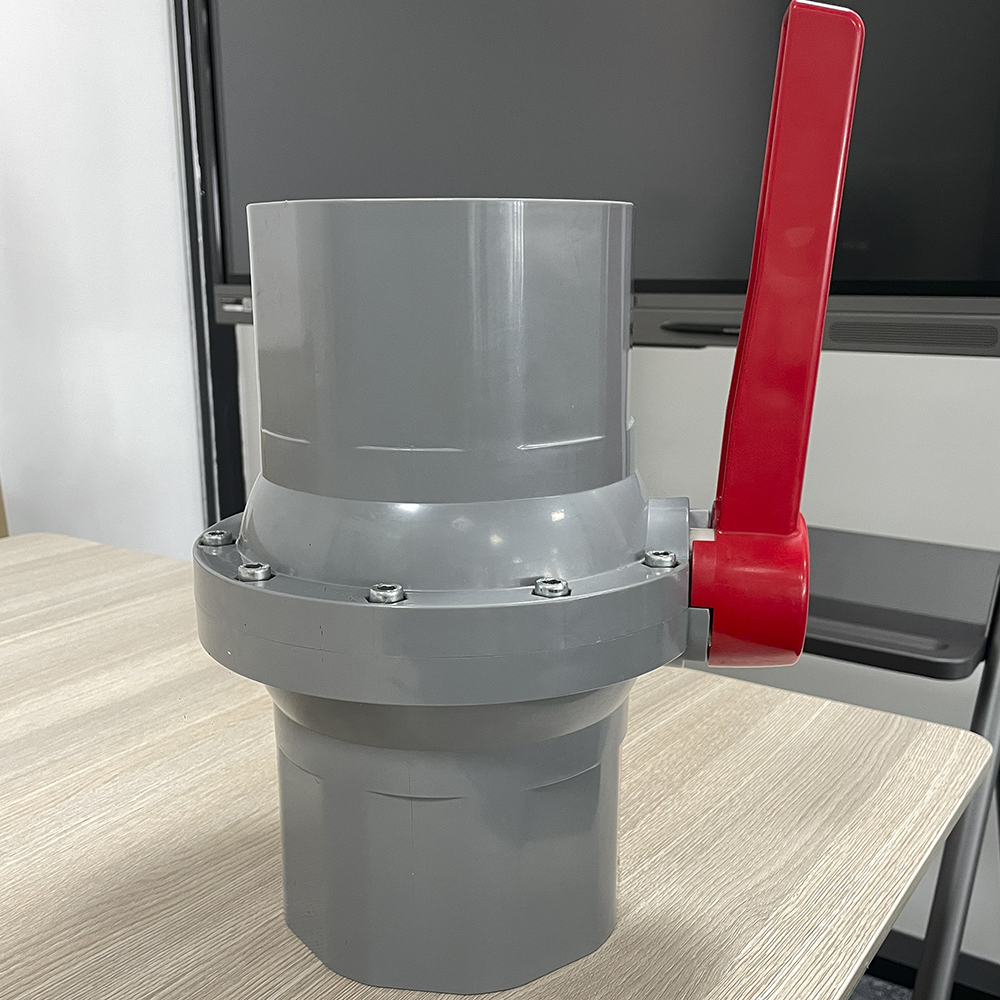

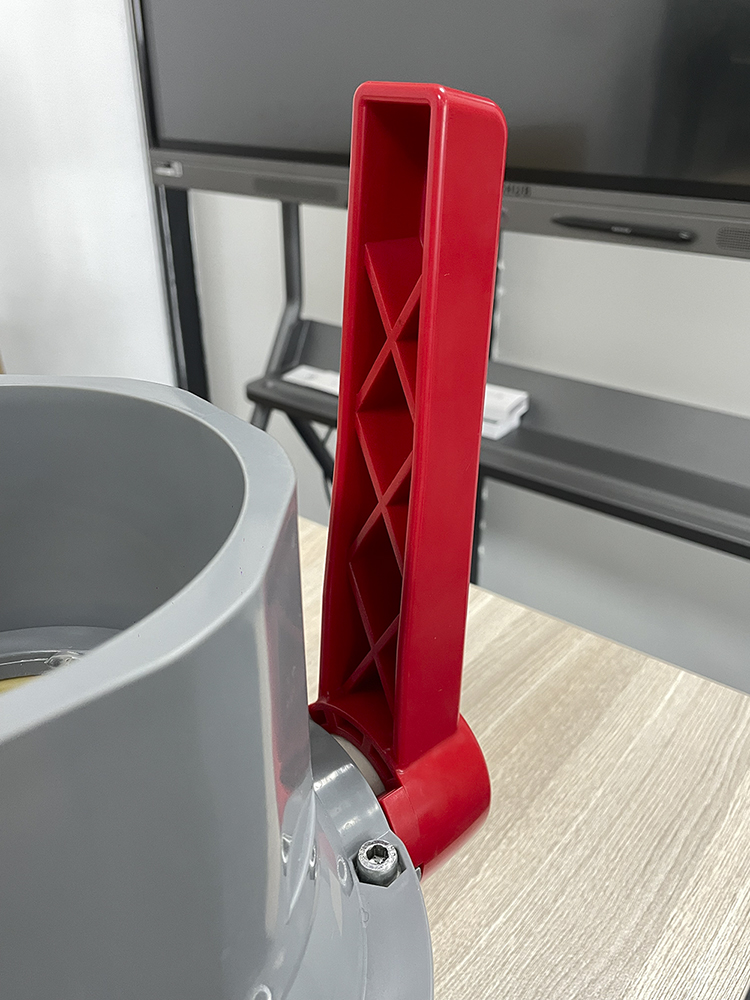

OEM Yepamusoro Hunhu140MM 160MM 168MM 200MM Stainless Simbi UPVC Yakakura Saizi Bhora Vvhavha YeProjekti DN200 Mufananidzo Unoratidzwa

Tsanangudzo Pfupi

Ball valve
1.Soft mavara & Compact design
2.Leakproff kushanda;
3.Light uye kubatana kunopera kuita nyore kuisa
4.Economic sezvo zvakachipa zvokufambisa mhosva & refu kushanda upenyu
5.Well uye kutonga kwepamusoro
6.Environment inoshamwaridzana, isina chepfu
7.Weathering & Abrasion resistance & yakanakisa makemikari kuramba
8.Inoshandiswa zvakanyanya mukuvaka, kudiridza, indasitiri uye dziva rekushambira
9.Small order inogamuchirwa
10.Customer's design & logo inogamuchirwa

Saizi140MM 160MM 168MM 200MM

Joint End:ASTM BS DIN ISO JIS

Working Pressure:PN16

Tumira email kwatiri

Product Detail

FAQ

Product Tags

Nhoroondo uye mepu yemuviri

singleproducimg

Component material

tsanangudzo yezvinhu

AIHWA.	Chikamu	Material	QTY
1	BODY	UPVC, CPVC	1
2	STEM O-Ring	EPDM,FPM(NBR)	1
3	STEM	UPVC, CPVC	1
4	Bhora	UPVC, CPVC	1
5	SEAT SEAL	TPE, TPVC, TPO	2
6	CAP	PVC, ABS	1
7	HANDLE	PVC, ABS	1
8	SCREW	SS304,STEEL	1

Model size parameter yekuenzanisa tafura

DIMENSION												Unit
MODEL	DN		15	20	25	32	40	50	65	80	100
	SIZE		1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	Inch
	thd./in	NPT	14	14	11.5	11.5	11.5	11.5	8	8	8	mm
	thd./in	BSPT	14	14	11	11	11	11	11	11	11	mm
	JIS	I	20	20	24	26	30	31	45	48	53	mm
		d1	22.3	26.3	32.33	38.43	48.46	60.56	76.6	89.6	114.7	mm
		d2	21.7	25.7	31.67	37.57	47.54	59.44	75.87	88.83	113.98	mm
	ANSI	I	18	20	24	26	30	31	45	48	53	mm
		d1	21.54	26.87	33.65	42.42	48.56	60.63	73.38	89.31	114.76	mm
		d2	21.23	26.57	33.27	42.04	48.11	60.17	72.85	88.7	114.07	mm
	DIN	I	18	20	24	26	30	31	45	48	53	mm
		d1	20.3	25.3	32.3	40.3	50.3	63.3	75.3	90.3	110.4	mm
		d2	20	25	32	40	50	63	75	90	110	mm
	d		15	19	24	30	34	45	55	70	85	mm
	H		37	55	66	73	81	91	99	121	134	mm
	A		68	80	94	100	110	136	170	210	236	mm
	L		77	91	103	111	123	146	178	210	255	mm
	D		32	37.5	44	52	60	74	93	110	135	mm
